  3. 505.002.033.010
505.002.033.010 505.002.033.010 505.002.033.010 505.002.033.010 505.002.033.010 Plug diagram for 505.002.033.010
505.002.033.010
0.120.339.515+
A132.634

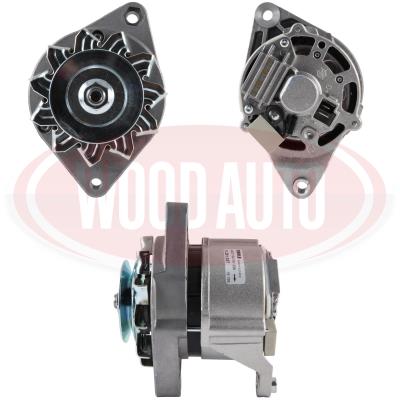

[ALT12006] Alternator Fiat 33A
505.002.033.010 supersedes:
WOOALT12006


Additional Details

BrandPLO

Unit of IssueEACH

Weight3.600kg

Intrastat8511500090

CoOCN

Property Value
Brand+Line Original
Voltage (V)12
Amperage (A)33
Pulley Diameter (mm)76.6
Plug Code1
Note 1Fiat, Same
OEM OEM Reference BOM
BOSCH 0120300527
BOSCH 0120300528
BOSCH 0120300529
BOSCH 0120300558
BOSCH 0120300559
BOSCH 0120300568
BOSCH 0120300569
BOSCH 0120339515
BOSCH 0120339516
BOSCH 0120339527
BOSCH 0120339528
BOSCH 0986030120
BOSCH 0986030121
BOSCH 3012
FIAT/MARELLI 63300900
FIAT/MARELLI 63300901
FIAT/MARELLI 63300920
FIAT/MARELLI 63300931
FIAT/MARELLI 63309000
FIAT/MARELLI 63362006
LUCAS LRA00199
LUCAS LRA00913
LUCAS LRA199
LUCAS LRA913
Make Model Type Year Info
DAF 66 1.1 1972 - 1975 1108cc, 4cyl, 48HP
DAF 66 1.1 MARATHON 1972 - 1975 1108cc, 4cyl, 54HP
DAF 66 1.1 SL 1972 - 1975 1108cc, 4cyl, 54HP
DAF 66 1300 MARATHON 1973 - 1975 1298cc, 4cyl, 57HP
FIAT 127 0.9 1971 - 1983 903cc, 4cyl, 40HP
FIAT 127 0.9 1971 - 1983 903cc, 4cyl, 45HP
FIAT 127 0.9 1972 - 1982 903cc, 4cyl, 45HP
FIAT 127 1.0 1972 - 1982 1010cc, 4cyl, 52HP
FIAT 127 1.0 1977 - 1986 1049cc, 4cyl, 50HP
FIAT 127 1.0 Sport 1978 - 1982 1049cc, 4cyl, 70HP
FIAT 128 1.1 1969 - 1984 1116cc, 4cyl, 55HP
FIAT 128 1.1 1975 - 1981 1116cc, 4cyl, 45HP
FIAT 128 1.1 (AC 5) 1972 - 1981 1116cc, 4cyl, 64HP
FIAT 128 1.1 (AC 5) 1975 - 1981 1116cc, 4cyl, 65HP
FIAT 128 1.1 (AF) 1969 - 1982 1116cc, 4cyl, 55HP
FIAT 128 1.1 (AF) 1975 - 1981 1116cc, 4cyl, 45HP
FIAT 128 1.3 (AC) 1972 - 1979 1290cc, 4cyl, 75HP
FIAT 128 1.3 (AF1) 1974 - 1982 1290cc, 4cyl, 60HP
FIAT 128 1.3 Berlinetta (AC) 1975 - 1979 1290cc, 4cyl, 73HP
FIAT 128 1.3 Rally (AR) 1971 - 1976 1290cc, 4cyl, 67HP
FIAT 128 1.3 Sport 1974 - 1984 1290cc, 4cyl, 60HP
FIAT FIORINO 1050 1980 - 1987 1049cc, 4cyl, 50HP
FIAT X 1.3 1973 - 1979 1290cc, 4cyl, 75HP
FIAT X 1.3 1975 - 1978 1290cc, 4cyl, 73HP
FORD SCORPIO 2.0 i 16V 1994 - 1998 1998cc, 4cyl, 136HP
VOLVO 66 DL 1.1 1975 - 1978 1108cc, 4cyl, 45HP
VOLVO 66 DL 1.1 1975 - 1979 1108cc, 4cyl, 45HP
VOLVO 66 GL 1.3 1975 - 1978 1289cc, 4cyl, 57HP
VOLVO 66 GL 1.3 1975 - 1979 1289cc, 4cyl, 57HP
ZASTAVA 101 1.1 1973 - 1990 1116cc, 4cyl, 55HP
ZASTAVA 101 1.1 1975 - 1980 1116cc, 4cyl, 50HP
ZASTAVA 101 1.1 1975 - 1993 1116cc, 4cyl, 56HP
ZASTAVA 101 1.1 Super 1979 - 1981 1116cc, 4cyl, 64HP
