  3. 305.510.090.010
305.510.090.010 305.510.090.010 305.510.090.010 305.510.090.010 305.510.090.010 Plug diagram for 305.510.090.010
305.510.090.010
0.124.325.004+
A132.247

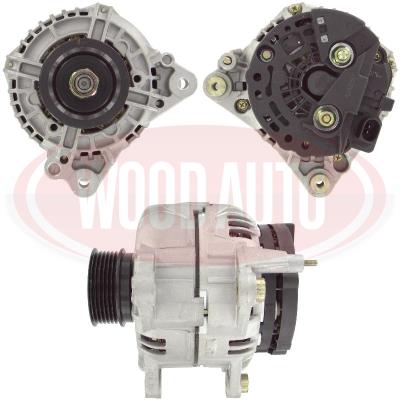

[ALT10311] Alternator Volkswagen 90A
305.510.090.010 supersedes:
WOOALT10311


Additional Details

BrandPLO

Unit of IssueEACH

Weight5.920kg

Intrastat8511500090

CoOCN

Property Value
Brand+Line Original
Voltage (V)12
Amperage (A)90
RotationCW
Pulley TypeFixed
Pulley Grooves6
Pulley Diameter (mm)68
B+ Terminal (30)M8
Plug Code121
Note 1VW
OEM OEM Reference BOM
BOSCH 0124325004
BOSCH 0986041230
BOSCH 4123
DAF 1516463R
LUCAS LRA01710
LUCAS LRA1710
MAGNETON 9517219
VALEO 2542244
VALEO 437513
VALEO 439529
VALEO 625342
VALEO A13VI306
VW (VOLKSWAGEN) 074903025K
VW (VOLKSWAGEN) 074903025KX
Make Model Type Year Info
VW GOLF 2.8 VR6 1992 - 1997 2792cc, 6cyl, 174HP
VW GOLF 2.8 VR6 1995 - 1997 2792cc, 6cyl, 163HP
VW GOLF 2.8 VR6 2000 - 2002 2792cc, 6cyl, 177HP
VW GOLF 2.8 VR6 2002 - 2005 2792cc, 6cyl, 200HP
VW LT 2.5 SDI 1996 - 2006 2461cc, 5cyl, 75HP
VW LT 2.5 TDI 1996 - 1999 2461cc, 5cyl, 102HP
VW LT 2.5 TDI 1999 - 2006 2461cc, 5cyl, 90HP
VW LT 2.5 TDI 1999 - 2006 2461cc, 5cyl, 109HP
VW LT 2.5 TDI 2001 - 2006 2461cc, 5cyl, 83HP
VW LT 2.5 TDI 2001 - 2006 2461cc, 5cyl, 95HP
VW TRANSPORTER 2.5 1990 - 2003 2461cc, 5cyl, 110HP
VW TRANSPORTER 2.5 1996 - 2003 2461cc, 5cyl, 115HP
VW TRANSPORTER 2.5 Syncro 1992 - 2003 2461cc, 5cyl, 110HP
VW TRANSPORTER 2.5 Syncro 1996 - 2003 2461cc, 5cyl, 115HP
VW TRANSPORTER 2.5 TDI 1995 - 2003 2461cc, 5cyl, 102HP
VW TRANSPORTER 2.5 TDI 1998 - 2003 2461cc, 5cyl, 88HP
VW TRANSPORTER 2.5 TDI 1998 - 2003 2461cc, 5cyl, 151HP
VW TRANSPORTER 2.5 TDI 2000 - 2003 2461cc, 5cyl, 151HP
VW TRANSPORTER 2.5 TDI 2003 - 2009 2461cc, 5cyl, 130HP
VW TRANSPORTER 2.5 TDI 2003 - 2009 2461cc, 5cyl, 174HP
VW TRANSPORTER 2.5 TDI Syncro 1995 - 2003 2461cc, 5cyl, 102HP
VW TRANSPORTER 2.5 TDI Syncro 1996 - 2003 2461cc, 5cyl, 102HP
VW TRANSPORTER 2.5 TDI Syncro 1998 - 2003 2461cc, 5cyl, 102HP
VW TRANSPORTER 2.8 1996 - 2000 2792cc, 6cyl, 140HP
VW TRANSPORTER 2.8 VR 6 1995 - 2000 2792cc, 6cyl, 140HP
VW TRANSPORTER 2.8 VR6 1996 - 2000 2792cc, 6cyl, 140HP
VW TRANSPORTER 2.8 VR6 2000 - 2003 2792cc, 6cyl, 204HP
VW TRANSPORTER 2.8 VR6 Syncro 1996 - 1996 2792cc, 6cyl, 140HP
VW TRANSPORTER / CARAVELLE 2.5 1990 - 2003 2461cc, 5cyl, 110HP
VW TRANSPORTER / CARAVELLE 2.5 1996 - 2003 2461cc, 5cyl, 115HP
VW TRANSPORTER / CARAVELLE 2.5 Syncro 1992 - 2003 2461cc, 5cyl, 110HP
VW TRANSPORTER / CARAVELLE 2.5 Syncro 1996 - 2003 2461cc, 5cyl, 115HP
VW TRANSPORTER / CARAVELLE 2.5 TDI 1995 - 2003 2461cc, 5cyl, 102HP
VW TRANSPORTER / CARAVELLE 2.5 TDI 1998 - 2003 2461cc, 5cyl, 88HP
VW TRANSPORTER / CARAVELLE 2.5 TDI 1998 - 2003 2461cc, 5cyl, 151HP
VW TRANSPORTER / CARAVELLE 2.5 TDI 2003 - 2009 2461cc, 5cyl, 130HP
VW TRANSPORTER / CARAVELLE 2.5 TDI 2003 - 2009 2461cc, 5cyl, 174HP
VW TRANSPORTER / CARAVELLE 2.5 TDI Syncro 1996 - 2003 2461cc, 5cyl, 102HP
VW TRANSPORTER / CARAVELLE 2.8 VR 6 1995 - 2000 2792cc, 6cyl, 140HP
VW TRANSPORTER / CARAVELLE 2.8 VR6 Syncro 1996 - 1996 2792cc, 6cyl, 140HP
VW TRANSPORTER / MULTIVAN 2.5 1990 - 2003 2461cc, 5cyl, 110HP
VW TRANSPORTER / MULTIVAN 2.5 1996 - 2003 2461cc, 5cyl, 115HP
VW TRANSPORTER / MULTIVAN 2.5 Syncro 1992 - 2003 2461cc, 5cyl, 110HP
VW TRANSPORTER / MULTIVAN 2.5 Syncro 1996 - 2003 2461cc, 5cyl, 115HP
VW TRANSPORTER / MULTIVAN 2.5 TDI 1995 - 2003 2461cc, 5cyl, 102HP
VW TRANSPORTER / MULTIVAN 2.5 TDI 1998 - 2003 2461cc, 5cyl, 88HP
VW TRANSPORTER / MULTIVAN 2.5 TDI 1998 - 2003 2461cc, 5cyl, 151HP
VW TRANSPORTER / MULTIVAN 2.5 TDI Syncro 1996 - 2003 2461cc, 5cyl, 102HP
VW TRANSPORTER / MULTIVAN 2.8 VR 6 1995 - 2000 2792cc, 6cyl, 140HP
VW TRANSPORTER / MULTIVAN 2.8 VR6 Syncro 1996 - 1996 2792cc, 6cyl, 140HP
VW VENTO 2.8 VR6 1992 - 1998 2792cc, 6cyl, 163HP
VW VENTO 2.8 VR6 1992 - 1998 2792cc, 6cyl, 174HP
VW VENTO 2.8 VR6 1995 - 1996 2792cc, 6cyl, 163HP
