  3. 135.511.120.010
135.511.120.010 135.511.120.010 135.511.120.010 135.511.120.010 Plug diagram for 135.511.120.010
135.511.120.010
0.124.515.080+

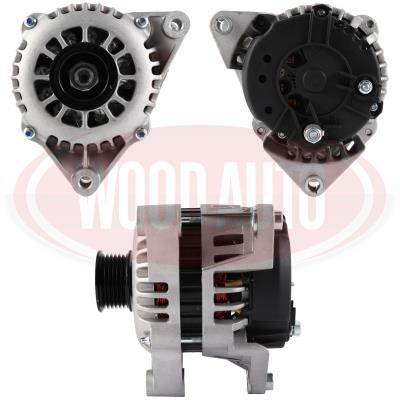

Alternator, 12v, 120A


Additional Details

BrandPLO

Unit of IssueEACH

Weight7.255kg

Intrastat8511500090

CoOCN

Property Value
BrandWood Auto
Voltage (V)12
Amperage (A)120
RotationCW
Pulley TypeFixed
Pulley Grooves6
Pulley Diameter (mm)56
Plug Code230
Alternator DesignIF/IR
OE ManufacturerBOSCH
Vehicle ManufacturerOPEL
Vehicle ManufacturerVAUXHALL
OEM OEM Reference BOM
BOSCH 0124515005
BOSCH 0124515009
BOSCH 0986044000
BOSCH 4400
LUCAS LRA02121
LUCAS LRA2121
VAUXHALL/OPEL 24414255
Make Model Type Year Info
OPEL ASTRA 2.0 DI 1998 - 2004 1995cc, 4cyl, 82HP
OPEL ASTRA 2.0 DI 1998 - 2005 1995cc, 4cyl, 82HP
OPEL ASTRA 2.0 DI 1999 - 2005 1995cc, 4cyl, 82HP
OPEL ASTRA 2.0 DTI 16V 1998 - 2004 1995cc, 4cyl, 101HP
OPEL ASTRA 2.0 DTI 16V 1999 - 2004 1995cc, 4cyl, 101HP
OPEL ASTRA 2.0 DTI 16V 1999 - 2005 1995cc, 4cyl, 101HP
OPEL ASTRA 2.2 DTI 2002 - 2004 2172cc, 4cyl, 117HP
OPEL ASTRA 2.2 DTI 2002 - 2004 2172cc, 4cyl, 125HP
OPEL ASTRA 2.2 DTI 2002 - 2005 2172cc, 4cyl, 117HP
OPEL ASTRA 2.2 DTI 2002 - 2005 2172cc, 4cyl, 125HP
OPEL OMEGA 2.0 DTI 16V 1997 - 2000 1995cc, 4cyl, 101HP
OPEL OMEGA 2.0 DTI 16V 1998 - 2000 1995cc, 4cyl, 101HP
OPEL OMEGA 2.2 DTI 16V 2000 - 2003 2171cc, 4cyl, 110HP
OPEL OMEGA 2.2 DTI 16V 2000 - 2003 2171cc, 4cyl, 120HP
OPEL OMEGA 2.2 DTI 16V 2001 - 2172cc, 4cyl, 117HP
OPEL SIGNUM 2.0 DTI 2003 - 2008 1994cc, 4cyl, 100HP
OPEL SIGNUM 2.0 DTI 2003 - 1994cc, 4cyl, 100HP
OPEL SIGNUM 2.2 DTI 2003 - 2008 2172cc, 4cyl, 125HP
OPEL SIGNUM 2.2 DTI 2003 - 2171cc, 4cyl, 125HP
OPEL SIGNUM 2.2 DTI 16V 2003 - 2008 2172cc, 4cyl, 117HP
OPEL VECTRA 2.0 DI 16V 1995 - 2001 1995cc, 4cyl, 82HP
OPEL VECTRA 2.0 DI 16V 1996 - 2000 1995cc, 4cyl, 82HP
OPEL VECTRA 2.0 DI 16V 1996 - 2002 1995cc, 4cyl, 82HP
OPEL VECTRA 2.0 DTI 2003 - 1995cc, 4cyl, 100HP
OPEL VECTRA 2.0 DTI 16V 1995 - 2001 1995cc, 4cyl, 101HP
OPEL VECTRA 2.0 DTI 16V 1997 - 2002 1995cc, 4cyl, 101HP
OPEL VECTRA 2.0 DTI 16V 1997 - 2003 1995cc, 4cyl, 101HP
OPEL VECTRA 2.0 DTI 16V 2002 - 2008 1995cc, 4cyl, 101HP
OPEL VECTRA 2.0 DTI 16V 2002 - 1995cc, 4cyl, 101HP
OPEL VECTRA 2.0 DTI 16V 2003 - 2008 1995cc, 4cyl, 101HP
OPEL VECTRA 2.2 DTI 2003 - 2008 2172cc, 4cyl, 117HP
OPEL VECTRA 2.2 DTI 2003 - 2172cc, 4cyl, 125HP
OPEL VECTRA 2.2 DTI 16V 1995 - 2001 2172cc, 4cyl, 125HP
OPEL VECTRA 2.2 DTI 16V 2000 - 2002 2172cc, 4cyl, 120HP
OPEL VECTRA 2.2 DTI 16V 2000 - 2002 2172cc, 4cyl, 125HP
OPEL VECTRA 2.2 DTI 16V 2000 - 2003 2172cc, 4cyl, 125HP
OPEL VECTRA 2.2 DTI 16V 2002 - 2004 2172cc, 4cyl, 117HP
OPEL VECTRA 2.2 DTI 16V 2002 - 2008 2172cc, 4cyl, 117HP
OPEL VECTRA 2.2 DTI 16V 2002 - 2008 2172cc, 4cyl, 125HP
OPEL VECTRA 2.2 DTI 16V 2002 - 2172cc, 4cyl, 125HP
OPEL VECTRA 2.2 DTI 16V 2003 - 2008 2172cc, 4cyl, 125HP
OPEL ZAFIRA 2.0 DI 1999 - 2000 1995cc, 4cyl, 86HP
OPEL ZAFIRA 2.0 DI 16V 1999 - 2005 1995cc, 4cyl, 82HP
OPEL ZAFIRA 2.0 DTI 16V 1999 - 2005 1995cc, 4cyl, 101HP
OPEL ZAFIRA 2.0 DTI 16V 2000 - 2005 1995cc, 4cyl, 101HP
OPEL ZAFIRA 2.2 DTI 16V 2002 - 2005 2172cc, 4cyl, 117HP
OPEL ZAFIRA 2.2 DTI 16V 2002 - 2005 2172cc, 4cyl, 125HP
VAUXHALL ASTRA 2.0 DI 1998 - 2004 1995cc, 4cyl, 82HP
VAUXHALL ASTRA 2.0 DI 1998 - 2005 1995cc, 4cyl, 82HP
VAUXHALL ASTRA 2.0 DI 1999 - 2005 1995cc, 4cyl, 82HP
VAUXHALL ASTRA 2.0 DTI 16V 1998 - 2004 1995cc, 4cyl, 101HP
VAUXHALL ASTRA 2.0 DTI 16V 1999 - 2004 1995cc, 4cyl, 101HP
VAUXHALL ASTRA 2.0 DTI 16V 1999 - 2005 1995cc, 4cyl, 101HP
VAUXHALL ASTRA 2.2 DTI 2002 - 2004 2172cc, 4cyl, 117HP
VAUXHALL ASTRA 2.2 DTI 2002 - 2004 2172cc, 4cyl, 125HP
VAUXHALL ASTRA 2.2 DTI 2002 - 2005 2172cc, 4cyl, 117HP
VAUXHALL ASTRA 2.2 DTI 2002 - 2005 2172cc, 4cyl, 125HP
VAUXHALL ASTRAVAN 2.0 DI 1998 - 2006 1995cc, 4cyl, 82HP
VAUXHALL ASTRAVAN 2.0 DTI 2004 - 2006 1995cc, 4cyl, 100HP
VAUXHALL OMEGA 2.0 DTI 16V 1997 - 2000 1995cc, 4cyl, 101HP
VAUXHALL OMEGA 2.0 DTI 16V 1998 - 2000 1995cc, 4cyl, 101HP
VAUXHALL OMEGA 2.2 DTI 16V 2000 - 2003 2171cc, 4cyl, 110HP
VAUXHALL OMEGA 2.2 DTI 16V 2000 - 2003 2171cc, 4cyl, 120HP
VAUXHALL OMEGA 2.2 DTI 16V 2001 - 2172cc, 4cyl, 117HP
VAUXHALL SIGNUM 2.0 DTI 2003 - 2008 1994cc, 4cyl, 100HP
VAUXHALL SIGNUM 2.0 DTI 2003 - 1994cc, 4cyl, 100HP
VAUXHALL SIGNUM 2.2 DTI 2003 - 2008 2172cc, 4cyl, 125HP
VAUXHALL SIGNUM 2.2 DTI 2003 - 2171cc, 4cyl, 125HP
VAUXHALL VECTRA 2.0 DI 16V 1995 - 2001 1995cc, 4cyl, 82HP
VAUXHALL VECTRA 2.0 DI 16V 1996 - 2000 1995cc, 4cyl, 82HP
VAUXHALL VECTRA 2.0 DI 16V 1996 - 2002 1995cc, 4cyl, 82HP
VAUXHALL VECTRA 2.0 DTI 16V 1995 - 2001 1995cc, 4cyl, 101HP
VAUXHALL VECTRA 2.0 DTI 16V 1997 - 2002 1995cc, 4cyl, 101HP
VAUXHALL VECTRA 2.0 DTI 16V 1997 - 2003 1995cc, 4cyl, 101HP
VAUXHALL VECTRA 2.0 DTI 16V 2002 - 2008 1995cc, 4cyl, 101HP
VAUXHALL VECTRA 2.0 DTI 16V 2002 - 1995cc, 4cyl, 101HP
VAUXHALL VECTRA 2.0 DTI 16V 2003 - 2008 1995cc, 4cyl, 101HP
VAUXHALL VECTRA 2.0 DTi 16V 1997 - 2001 1995cc, 4cyl, 101HP
VAUXHALL VECTRA 2.0 Di 16V 1995 - 2001 1995cc, 4cyl, 82HP
VAUXHALL VECTRA 2.2 DTI 16V 1995 - 2001 2172cc, 4cyl, 125HP
VAUXHALL VECTRA 2.2 DTI 16V 2000 - 2002 2172cc, 4cyl, 120HP
VAUXHALL VECTRA 2.2 DTI 16V 2000 - 2002 2172cc, 4cyl, 125HP
VAUXHALL VECTRA 2.2 DTI 16V 2000 - 2003 2172cc, 4cyl, 125HP
VAUXHALL VECTRA 2.2 DTI 16V 2002 - 2004 2172cc, 4cyl, 117HP
VAUXHALL VECTRA 2.2 DTI 16V 2002 - 2008 2172cc, 4cyl, 117HP
VAUXHALL VECTRA 2.2 DTI 16V 2002 - 2008 2172cc, 4cyl, 125HP
VAUXHALL VECTRA 2.2 DTI 16V 2002 - 2172cc, 4cyl, 125HP
VAUXHALL VECTRA 2.2 DTI 16V 2003 - 2008 2172cc, 4cyl, 125HP
VAUXHALL ZAFIRA 2.0 DI 16V 1999 - 2005 1995cc, 4cyl, 82HP
VAUXHALL ZAFIRA 2.0 DTI 16V 1999 - 2005 1995cc, 4cyl, 101HP
VAUXHALL ZAFIRA 2.0 DTI 16V 2000 - 2005 1995cc, 4cyl, 101HP
VAUXHALL ZAFIRA 2.2 D 2001 - 2005 2172cc, 4cyl, 125HP
